No soldering is required. Ideal project for those new to prop building

The Pack board is 100% plug and play and uses all the stock connectors, lights, etc. You can use the stock, unmodified Hasbro Wand with just a Pack only board. However you will not have any Pack/Wand communication. You will be able to still add on the inner Cyclotron & Panel LED kit!
The Wand board requires minor modifications to the wand to get inside and to desolder existing wires from the original board to reuse on the Wand board. However, if soldering is not your thing, don't worry! We designed it to be user friendly by simply clipping the wires off!
Upgrading the Wand requires a new hose connector (included with the wand kit).

Words cannot describe...
so let us show you first!

This kit is best articulated in live action. Check our these videos for the most accurate demonstration!

Main Features

All existing Haslab Pack and Hasbro Wand features still exist (ie. ribbon cable removal, The Video Game firing modes, volume control).
3 different modes!
- Afterlife 2021
- Ghostbusters 1984
- Ghostbusters II 1989 (think of the slightly different boot up effect from the courtroom scene)
- Applies to both Pack and Wand.
Can turn on the Pack via the Wand Activate Switch.
1984/1989 mode uses the middle LED only for an accurate look. (The 3 LED per lens option can be toggled via the Wand sub menu).
Clockwise/Counter clockwise cyclotron direction.
Start up and shut down ramping lights/sound sequence.
Continuous firing! You can fire your stream forever or have it overheat depending on the power level of the steam.
- Customisable from the user customisable features.
Wand tail firing sound when you stop firing (3 variations based on how long you have been firing)
Wand only fires when the barrel is extended and the 2 right side toggle switches are activated unlike the stock Wand.
Wand bargraph has new animations.
Three - 5V pin relays (they trigger during overheat and occasionally while continuous firing).
- Can be used for optional smoke, fans etc.
- Customizable from the user customizable features.

Ramp up animations

Accurate '84/'89 modes

New bargraph animations

Quick disconnect hose connectors

Click to listen to the symphony of sounds overlapping!

Unique Features 1

Utilizing Polyphonic technology from The Wav Trigger audio device, this kit can play and mix up to 14 stereo tracks simultaneously and independently.
Example:

Your Pack boots up and the idle sound effects overlay/transition smoothly.
You boot up the Wand via the 3 toggle sequence accurate to the Afterlife movie and notice each unique toggle effect that is played is layered on top of each other.
You Fire! While blasting away with the Proton stream you can still hear all the layers of sound effects that came before...the Pack effects, each Wand toggle effect, etc.
Oh and let's not forget music mode. Yes while your Pack is rocking out tracks from your favourite Ghostbuster scenes you can still operate your Proton Pack with all of it's accompanying sound effects independently and once again layered on top of the music
You may also notice during all this that the transitions between sound effects are smoothly layered with no janky transitions.

Play 14 tracks simultaneously and independantly

Buttery smooth transitions

No jankiness

Unique Features 2

A DEEP Wand settings menu:

Accessed via the barrel’s orange hat light after toggling The Video Game modes or while the Wand is powered down.
Music playback control, volume control for Pack/Wand, independent music volume control for Pack/Wand, independent sound effects volume control for Pack/Wand, loop music track, change track.
Wand sub menu allowing you to toggle various main features:
- 1984/1989/2021 mode,
- cyclotron rotation direction,
- toggle 1984/1989 modes single LED to 3 LEDs per cyclotron lens
- vibration
- vibration while firing only
- smoke
- crossing the streams /Video Game modes
- More information can be found here

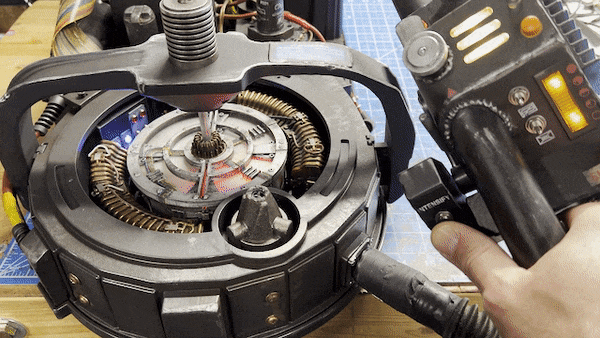

Inner Cyclotron Add-On Kit

Inner Cyclotron Cake with spinning lights
- pop in a 35 neopixel ring into your existing cyclotron cake or 3D printed replacement to really bring an awesome Haslab inclusion to life! it can also change colour based off The Video Game firing modes
LED support for the inner panel switch next to the Cyclotron Cake.
- Again, really makes the inside of your Pack POP!

3D printed Cyclotron

Existing Cyclotron

Optional Add-On Features

Parts not included

Clockwise/Counter clockwise cyclotron direction toggle switch (you can still toggle this via the Wand sub menu system)
2 Smoke features:
- When firing you can have smoke come out of the booster tube like a chimney
- Mimic The Video Game vent sequence by overheating your Wand and watch smoke burst out of your N-filter accompanied by a flashing light to accentuate the smoke.
Toggle switch to enable or disable the smoke relays. These can also be toggled on/off via the Wand sub menu system.
28 LED bargraph segment to replace the 5 LED Hasbro bargraph
- Think back to the "heat 'em up!" moment
40 NeoPixel ring to replace the lights in the cyclotron lid. This enables you to have The Video Game mode colours in your cyclotron lid
Neopixel Jewel vent light.
- This can chain off any existing addressable LEDs in the cyclotron lid. Such as the stock hasbro lights or a NeoPixel ring. (Click here for more information)

Other Required Components

Not included

Speaker & amp combination or bluetooth speaker.
- The stock Proton Pack speaker and volume rotary encoder are soldered to the stock board and will be removed along with the board. We will provide a new rotary encoder that plugs into the board but a new speaker system is required.
- There are many options out and it's really up to you.
  - A pair of 3" 15w speakers & 15w Class D stereo amp and it's enough to Pack a punch.
  - Many others out there prefer using a bluetooth speaker and JBL seems to be a popular choice. You can also use the stock speaker. This will be left up entirely to the user. The Wav Trigger audio boards have a AUX stereo output cable port and also an on-board mono amplifier which is rated for 2W @ 4Ω or 1W @ 8Ω. The recommended setting is using the AUX stereo output for the Proton Pack to a stereo amplifier and using the onboard amplifier for the Neutrona Wand while reusing the stock Wand speaker.
2 MicroSD cards are required, 1 for each Wav Trigger.
Power requirements:
- A regulated 5V is required to power the system with up to 2 amps is recommended.
- The TalentCell Rechargeable 3000mAh 12V/5V battery Pack is recommended as it has input connections to output both 5v and 12v without modifications/added components needed. The 12V/5V TalentCell can be useful if you decide to use a 12V amp for your Proton Pack audio. However any other battery can work as long as it meets the power requirements indicated.
